プライベートなコンテナイメージを Amazon Lightsailで使う

前提

・ローカルにプライベートなDockerイメージが作成済であること ・AWS CLIがインストールされていること ・lightsailctl プラグインがインストールされていること

手順

IAMを作成する

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "lightsail:CreateContainerServiceRegistryLogin",
                "lightsail:RegisterContainerImage"
            ],
            "Resource": "*"
        }
    ]
}

AWSコンソールからLigthsailのコンテナを作成する

プライベートなコンテナイメージを動作させるためのコンテナを事前に作成しておく必要がある ここではあらかじめ用意されているサンプル(helloworld)イメージで作成

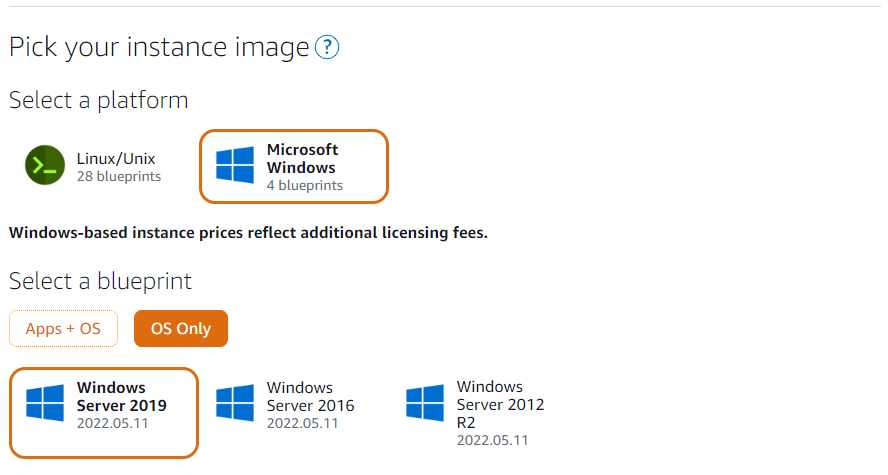

Lightsail作成画面1

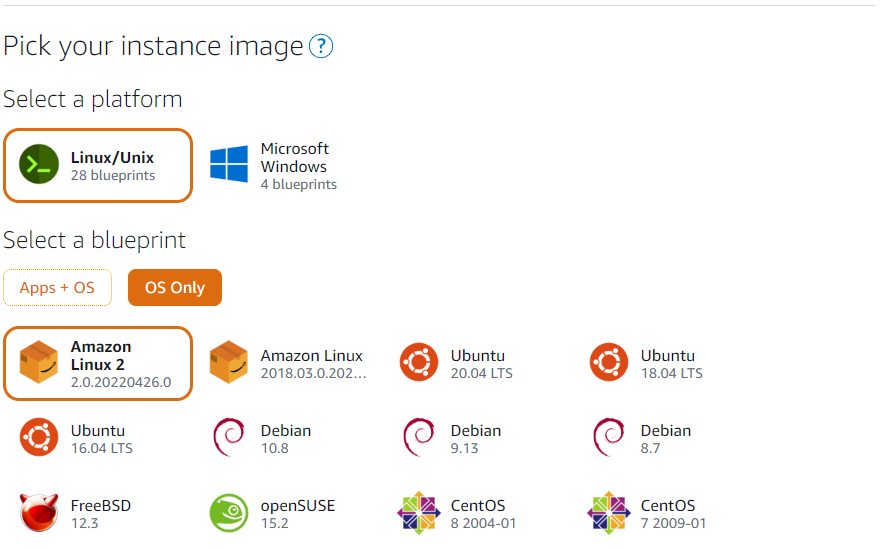

Lightsail作成画面2

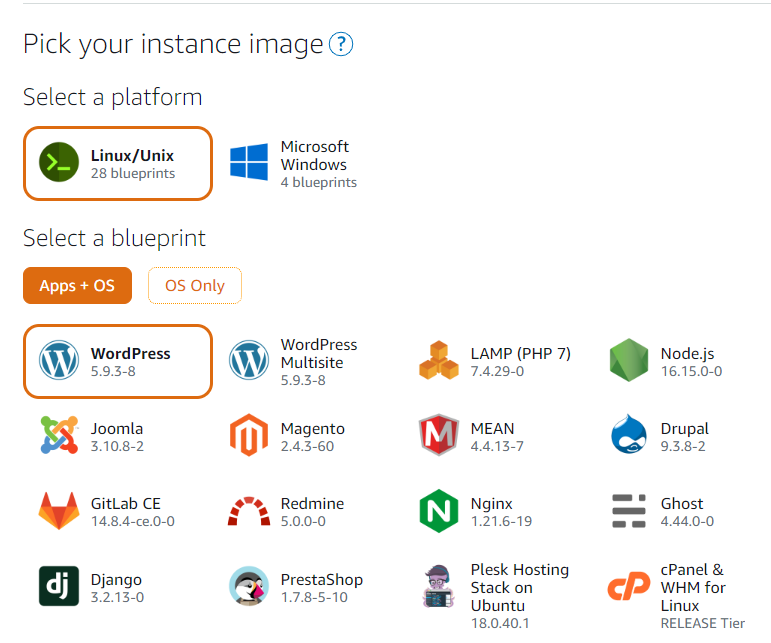

Lightsail作成画面3

ローカルPCからプライベートなコンテナイメージをプッシュ

例)
aws lightsail push-container-image --region <Region>  --service-name <ContainerServiceName> --label <ContainerImageLabel> --image <LocalContainerImageName>:<ImageTag>
C:\>aws lightsail push-container-image --region ap-northeast-1 --service-name container-service-1 --label testlabel --image vue-lightsail-sample:latest
WARNING: You are using version 1.0.0 of lightsailctl, but version  is available. To download, visit https://lightsail.aws.amazon.com/ls/docs/en_us/articles/amazon-lightsail-install-software

[1B91e2ecca: Preparing
[1B05b757d2: Preparing
[1B697b6f38: Preparing
[1Bd149735d: Preparing
[1B3049c5e5: Preparing
[1B846bc438: Preparing
[1B8b32331d: Preparing
[1B00332834: Preparing
[1Bfd1e3667: Preparing
[1B157cbca7: Preparing
[7BDigest: sha256:12888b3911787a225d01127a4faa83c50d6d9e2e1eda8256c0c900a6851ccf52B/216.4MB
Image "vue-lightsail-sample:latest" registered.
Refer to this image as ":container-service-1.testlabel.1" in deployments.

プッシュに成功すると、Lightsail コンソールのImagesタブにプッシュしたイメージが表示される

デプロイ

Lightsail コンソールのDeploymentsタブからModify your deploymentをクリックし、Choose stored imageからプッシュしたイメージを選択

※コンテナで動作するアプリケーションのポートに合わせてポートを指定しないとエラーが発生した

参考

プライベートなコンテナイメージを Amazon Lightsail コンテナサービスで使う | DevelopersIO

Docker for Windows で作成したコンテナは、プライベートなので Amazon Lightsail コンテナにデプロイできないから、対応した記録 - Qiita

AWS CLI & lightsailctl プラグインのインストール

AWS CLI のインストール

docs.aws.amazon.com

下記のコマンドを実行してインストール

C:\>msiexec.exe /i https://awscli.amazonaws.com/AWSCLIV2.msi

確認

C:\>aws --version
aws-cli/2.6.3 Python/3.9.11 Windows/10 exe/AMD64 prompt/off

lightsailctl プラグインのインストール

下記のファイルをダウンロードしてPATHを通す

https://s3.us-west-2.amazonaws.com/lightsailctl/latest/windows-amd64/lightsailctl.exe

Springのテストで使用するアノテーション

Springのテストで使用するアノテーションを整理する。

@ContextConfiguration (org.springframework.test.context.ContextConfiguration)

Spring Frameworkのテストで使用するアノテーション。 テストクラスと同じパッケージ上に存在する「テストクラス名-context.xml」が読み込まれる。 命名ルールに沿わない場合はlocationで指定する。

@ExtendWith({ SpringExtension.class })
@ContextConfiguration(locations = {"/test-applicationContext.xml", "/test-applicationContext-dao.xml"})
public class AbstractTestCase {

@SpringBootTest (org.springframework.boot.test.context.SpringBootTest)

テスト実行時のコンフィグレーションクラスを自動検出する。 SpringBootを使わない場合は、上記の@ContextConfiguration でコンフィグレーションを明示する必要があるがそれが不要になる。

自動検出の対象は@SpringBootConfigurationが付与されたクラスで、@SpringBootApplicationが付与されたクラスも対象となる。 (@SpringBootApplicationに@SpringBootConfigurationが付与されているため)

自動検出の対象から除外する場合

自動検出の弊害として、特定のテスト用に作成したコンフィグレーションが意図せず読み込まれることがある。 そのようなことを防ぎたい場合は、@Configurationの代わりに@TestConfiguration (後述)を使用することで自動検出の対象から除外される。

@TestConfiguration (org.springframework.boot.test.context.TestConfiguration)

自動検出の対象外としたいコンフィグレーションクラスをマークするために使用する。

//@Configuration
@TestConfiguration
public class HogeTestConfiguration {

    @Bean
    public HogeRepository oracleHogeRepository() {
        return new OracleHogeRepository();
    }

}

@ExtendWith (org.junit.jupiter.api.extension.ExtendWith)

JUnit4で使用されていた@RunWithに置き換わるもので、@RunWithと違い複数の拡張クラスを指定できるように変更されている。

(参考)JUnit5を使おう - エムスリーテックブログ

@TestExecutionListeners (org.springframework.test.context.TestExecutionListeners)

指定したListenerをTestContextManagerに設定することで、下記のような様々な機能を利用できる。

クラス用途
ServletTestExecutionListenerモックサーブレットAPIを設定する機能を提供
DirtiesContextBeforeModesTestExecutionListenerテストで使用するDIコンテナのライフサイクル管理機能を提供
DependencyInjectionTestExecutionLiLstenerテストで使用するインスタンスへDI機能を提供
DirtiesContextTestExecutionListenerテストで使用するDIコンテナのライフサイクル管理機能を提供
TransactionalTestExecutionListenerテスト実行時のトランザクション機能を提供
SqlScriptsTestExecutionListener@Sqlアノテーションで指定されているSQLを実行する

Relaxed Bindingについて

Circuit Breakerについて調べていた時、サイトによって設定ファイル(application.yml)に定義するプロパティがキャメルケースだったり、ケバブケースだったりどちらが正しいんだろって疑問を持ってたんだけど、どっちも正しかった。

Relaxed Binding docs.spring.io

Redisinsightに触る

RedisinsightはGUIでRedisを操作できるWebアプリケーション
操作はブラウザから行う

セットアップ

docker-compose.yml

version: '3.8'
services:
  redis:
    container_name: redis
    image: "redis:latest"
    ports:
      - "16379:6379"
    volumes:
      - "./redis/data:/data"
  redisinsight:
    container_name: phptips_redisinsight
    image: redislabs/redisinsight:latest
    ports:
      - 18001:8001
    volumes:
      - ./redis/insight:/db

実行

docker-compose up -d

ブラウザからアクセス

下記へアクセス

http://localhost:18001/

接続先を登録

dockerコンテナ上で動作しているRedisを接続先に登録する

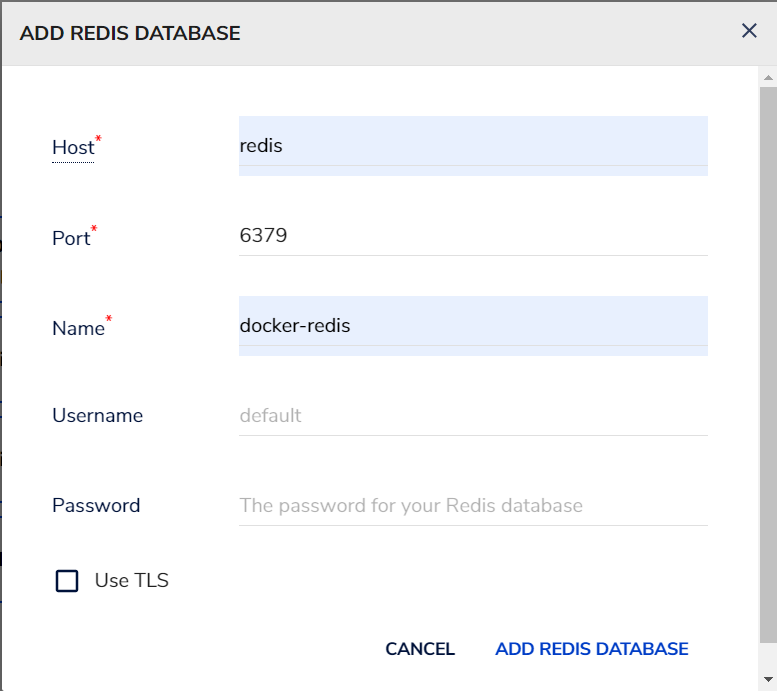

f:id:samehada3:20211126233723p:plain
docker上で動作しているRedisを登録

管理コンソール

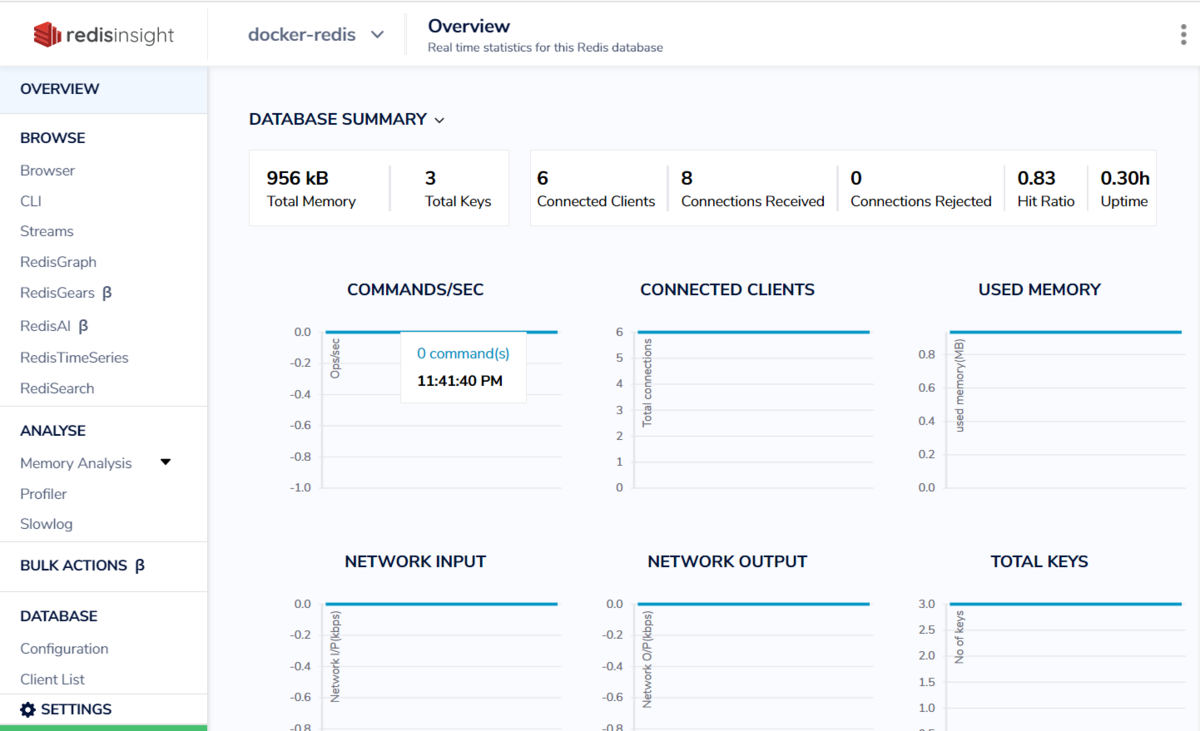

f:id:samehada3:20211126234407p:plain
管理コンソール

POST処理を非同期で実行する

FormでSubmitされたリクエストを非同期に切り替えるサンプル

$(function () {
    $('#userForm').submit(function (event) {
        // HTMLでの送信をキャンセル
        event.preventDefault();
        // 操作対象のフォーム要素を取得
        var $form = $(this);

        $("#overlay").fadeIn(300);

        // 送信
        $.ajax({
            url: $form.attr('action'),
            type: $form.attr('method'),
            dataType: "html",
            data: $form.serialize(),

            // 通信成功時の処理
            success: function (result, textStatus, xhr) {
                //alert(result);
                $("#embeddedContainer").html(result);

                $("#overlay").fadeOut(300);
            },

            // 通信失敗時の処理
            error: function (xhr, textStatus, error) {
                alert('NG...');

                $("#overlay").fadeOut(300);
            }
        });
    });
});
